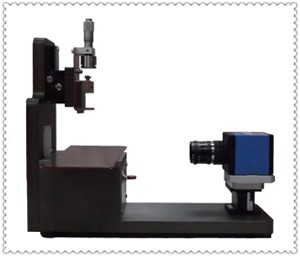

Contact Angle Measuring Instrument
| Type |
Contact Angle Measuring |
| Size |
330*100*330 (mm) |
| Power |
AC 110 V or DC 12V |
| Application |
The Industry that must detect surface cleanliness |
| Function |
1.Collect image from table style measuring
2.Manual micro adjust of titration
3.Product maximum movable distance: 110(mm)
4.Maximum height of measuring thickness: 10(mm)
5.Measurement degree:0-180 Degree
6.Measurement resolution:：0.1 degree
7.Measuring method: Static measurement (average left and right contact angle)
8.Measuring Range：0-180°( almost 0.1°)
9.Collect Speed：60 image / sec
10.Image format：BMP |
| Features |
Changing Power design, can use AC110V or DC12V(From Battery) |
|
