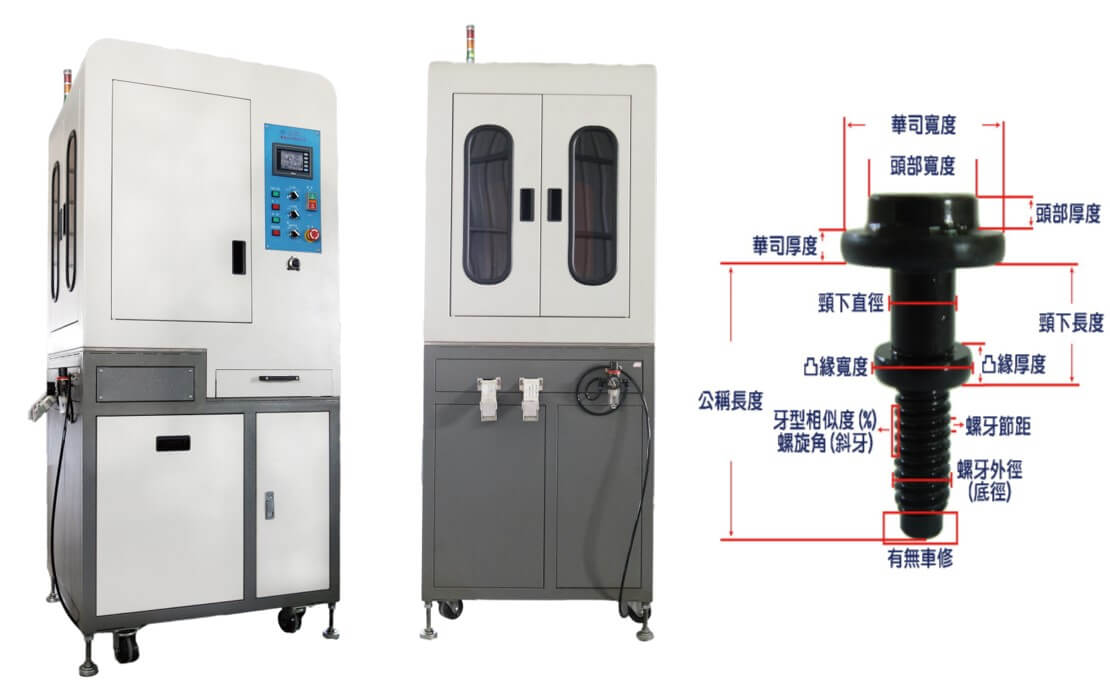

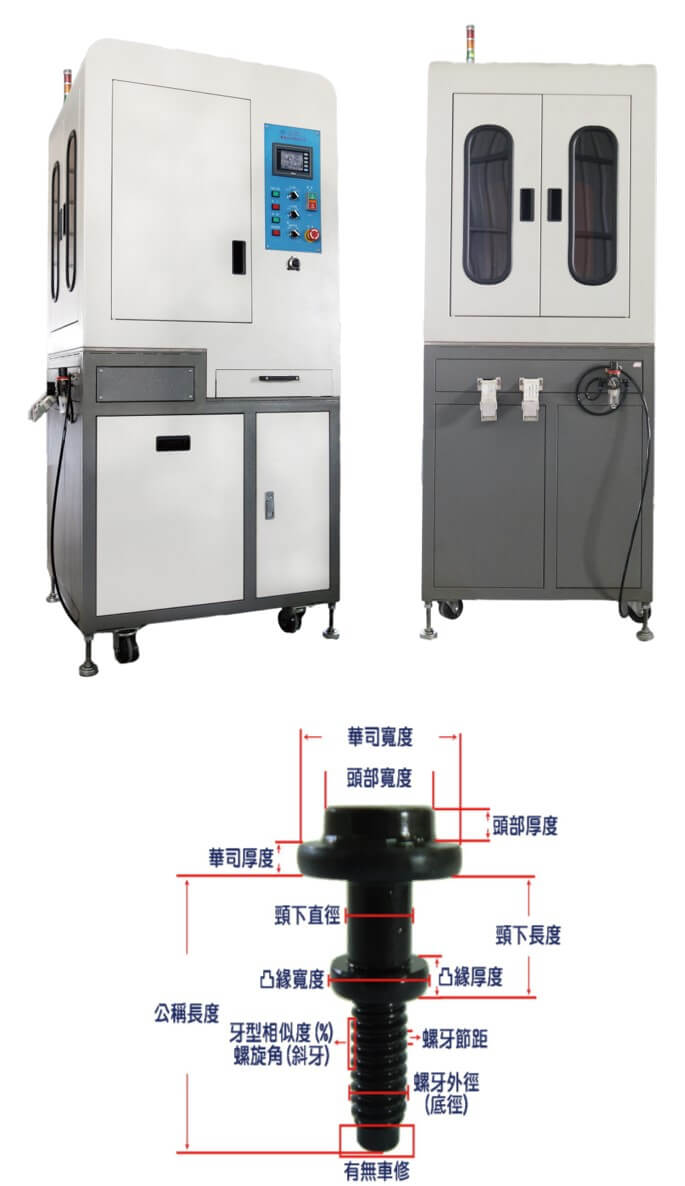

SV0204 Electronic Screw Sorting Machine
| Type |
SV0204 |
| Size |
720*830*1900 (mm) |
| Power |
1Φ 220V / 380V 3~5A |
| Application |
Fastener testing |
| Function |
1. Head (Washer) width
2. Head (Washer) Height
3. Recess Depth
4. Ineffective Thread
5. Thread Diameter
6. Thread bottom Diameter
7. Thread Pitch
8. Thread Moderate
9. Screw Length
10. Screw point
11. Head diameter
12. Head crack
13. Concetricity
14. 360º outter crack |
| Features |
Taiwan Patent |
|
