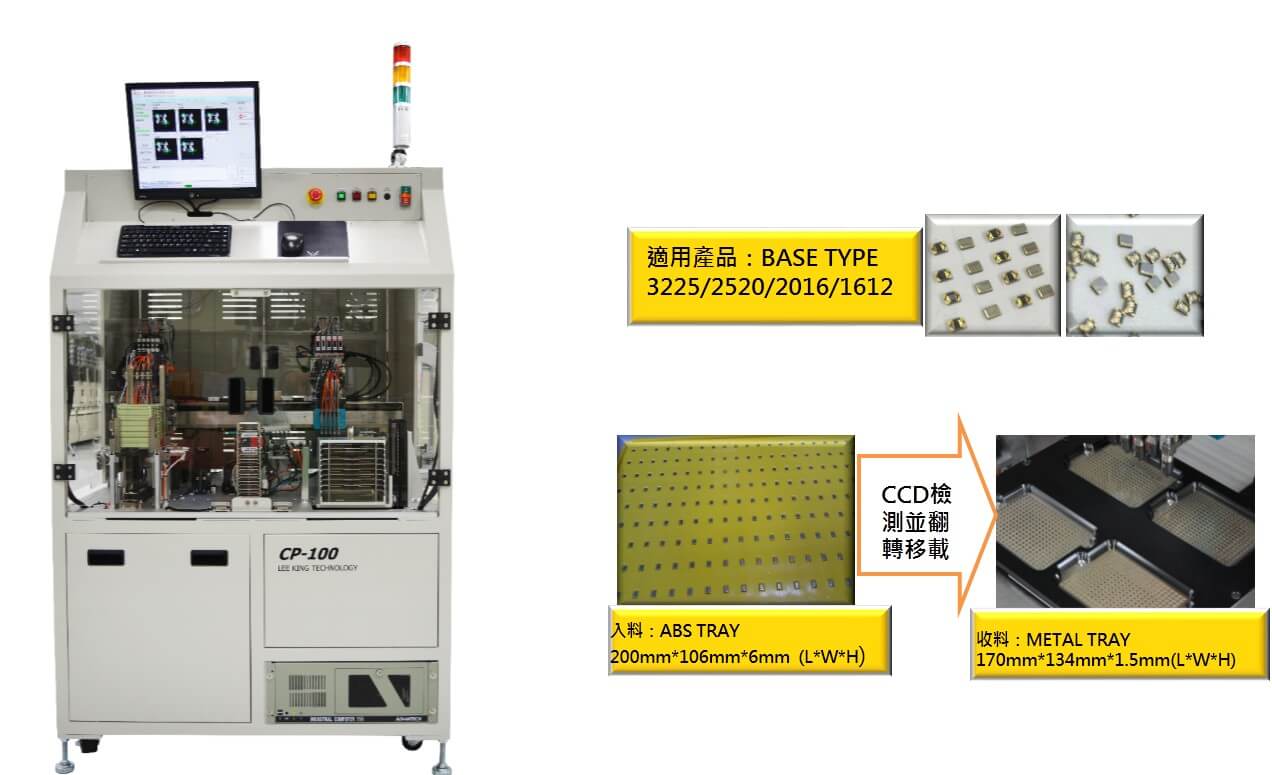

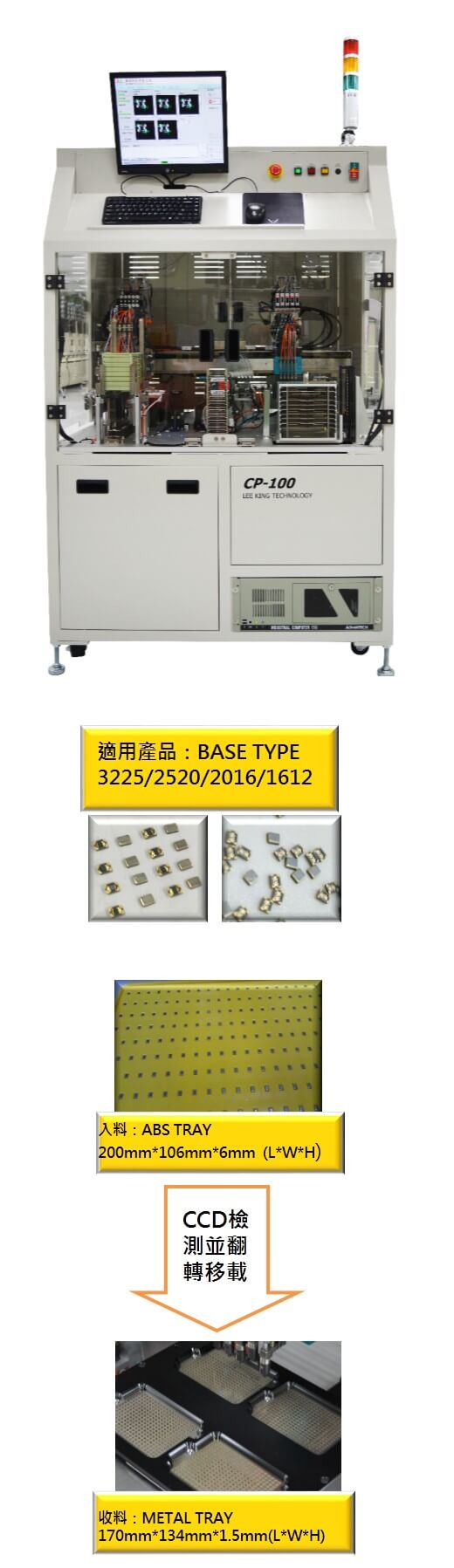

CP-100 Tray Loading Machine
| Type |
CP-100 |
| Size |
1300*1200*1750 (mm) |
| Power |
1Φ 220V 25A |
| Application |
Passive component,Photoelectric component,Crystal oscillator |
| Function |
Taking the component of loading tray go through the appearance CCD checking then place overturning mechanism and doing overturning . Positioning mechanism take to the receiving tray accurately after overturning then put on the table.
|
| Features |
Insert Rate : ≧99.0%(PCS)
Index Time : 1.2 sec/pcs
|
|
